Product Overview

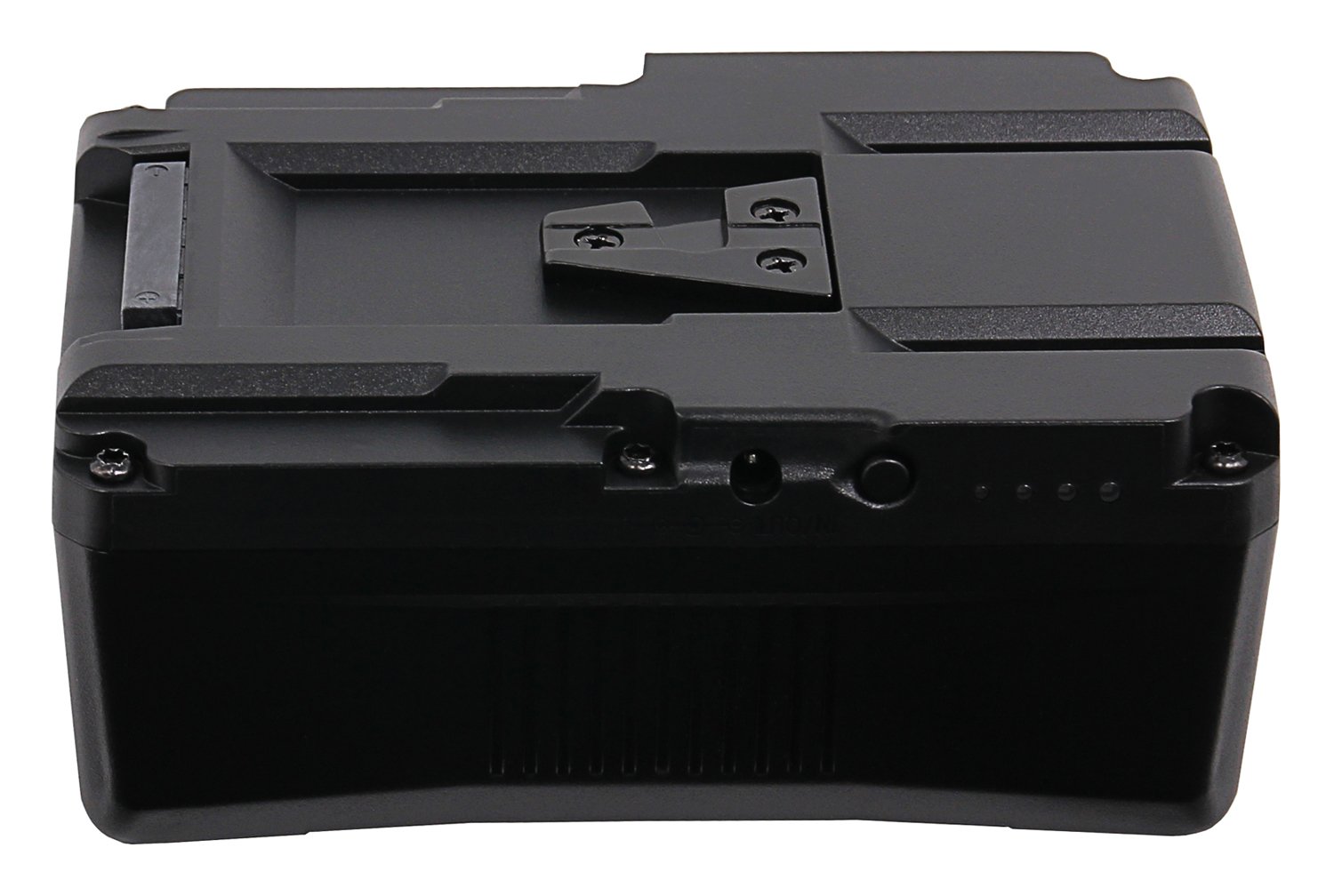

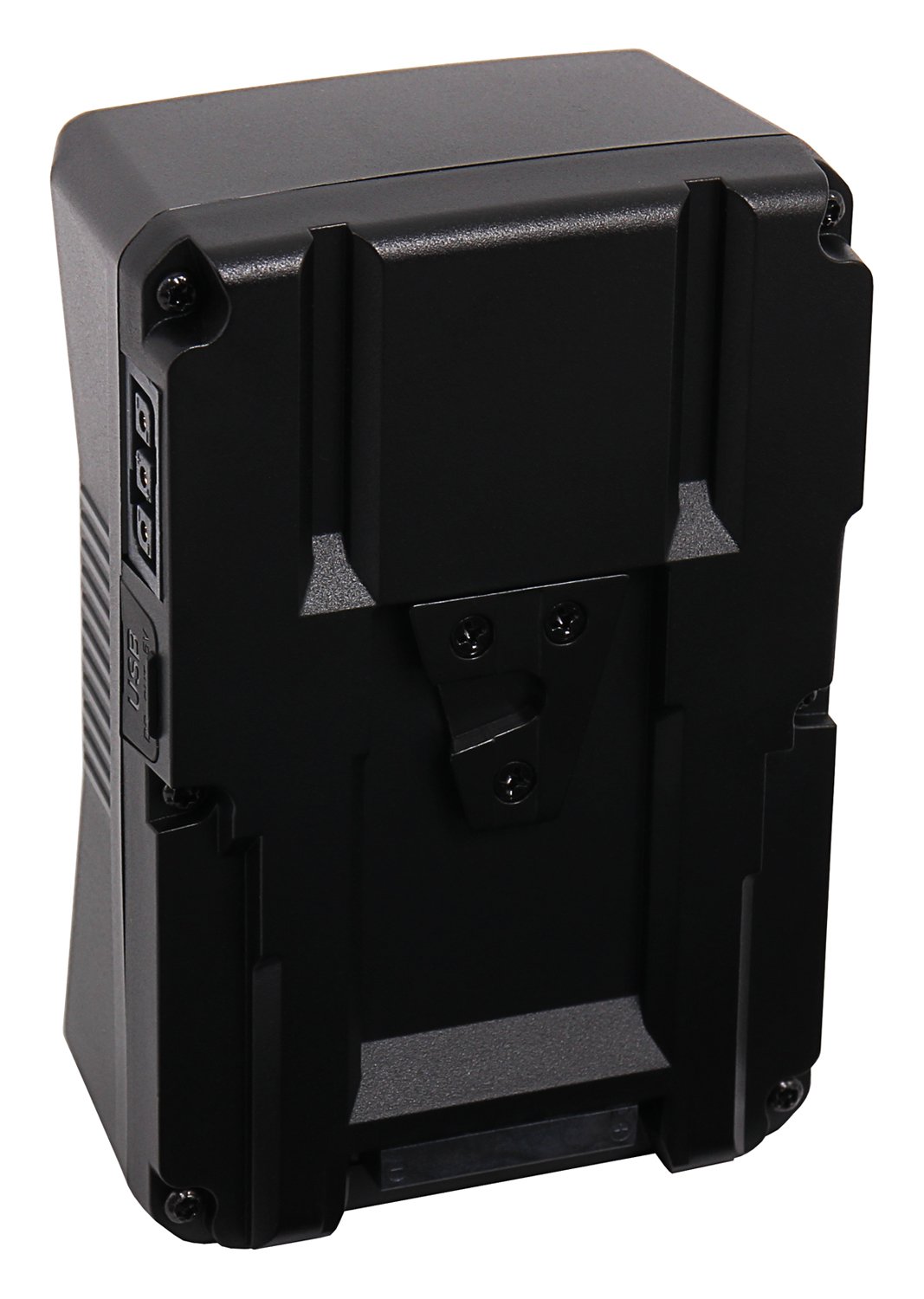

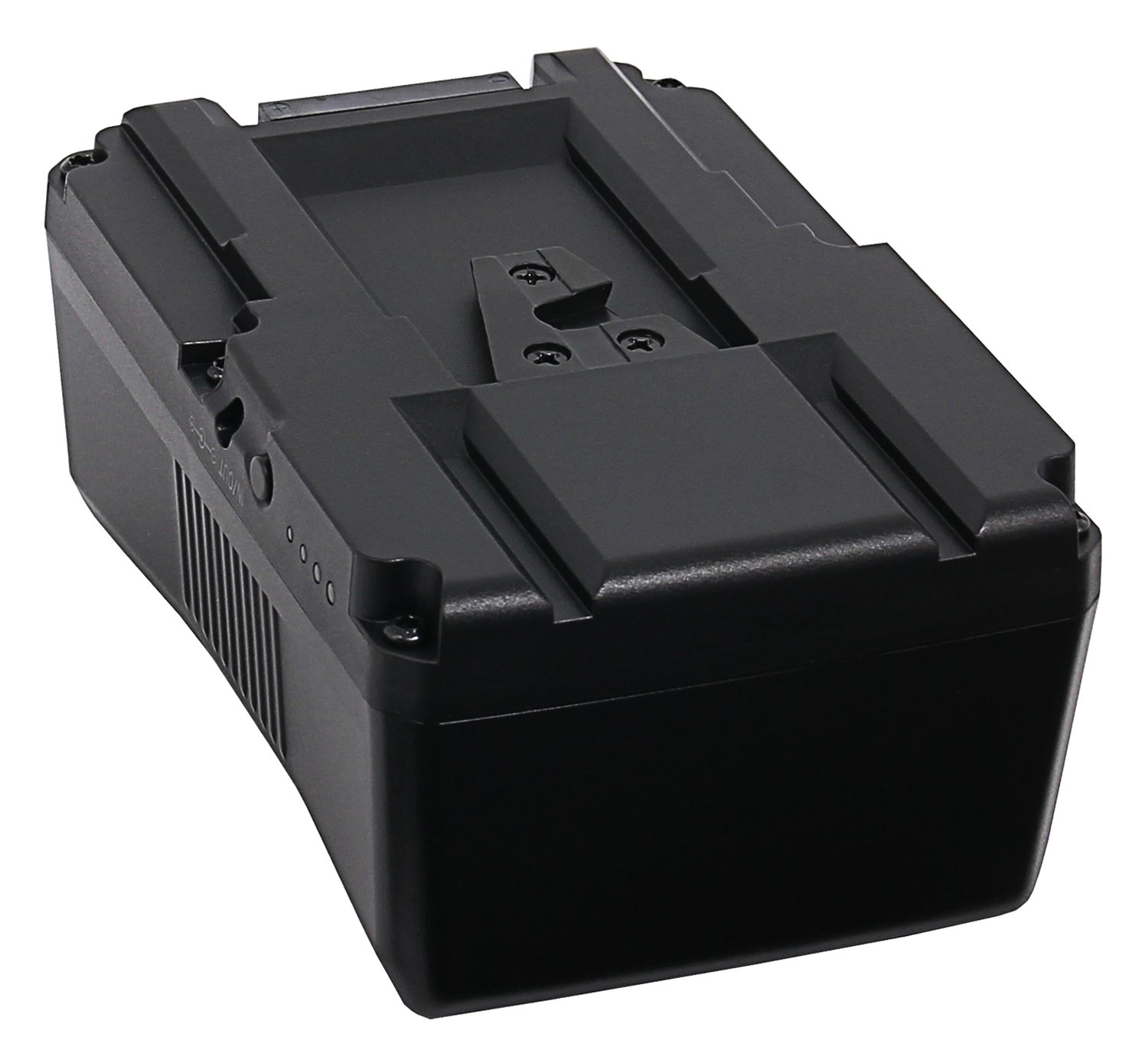

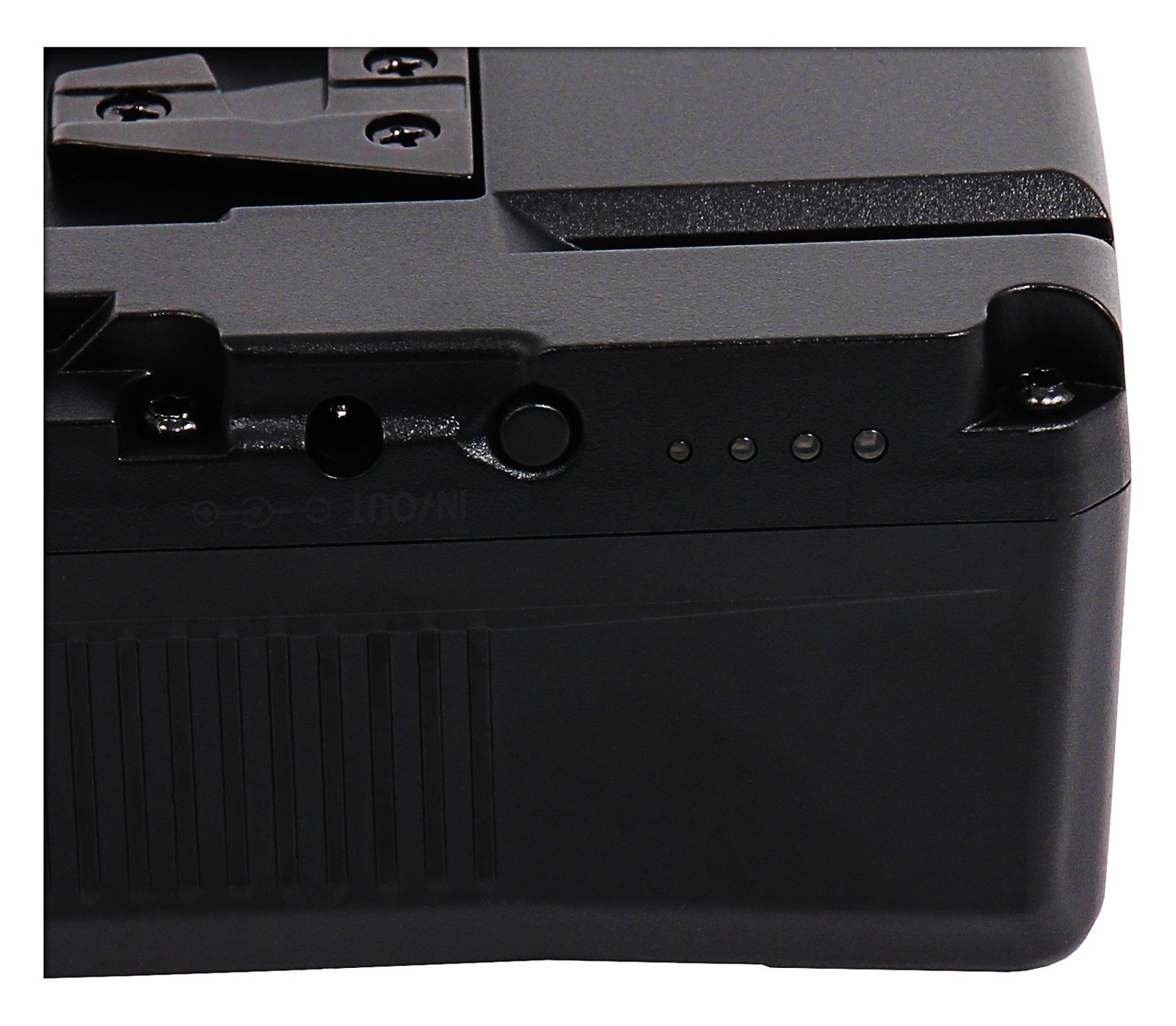

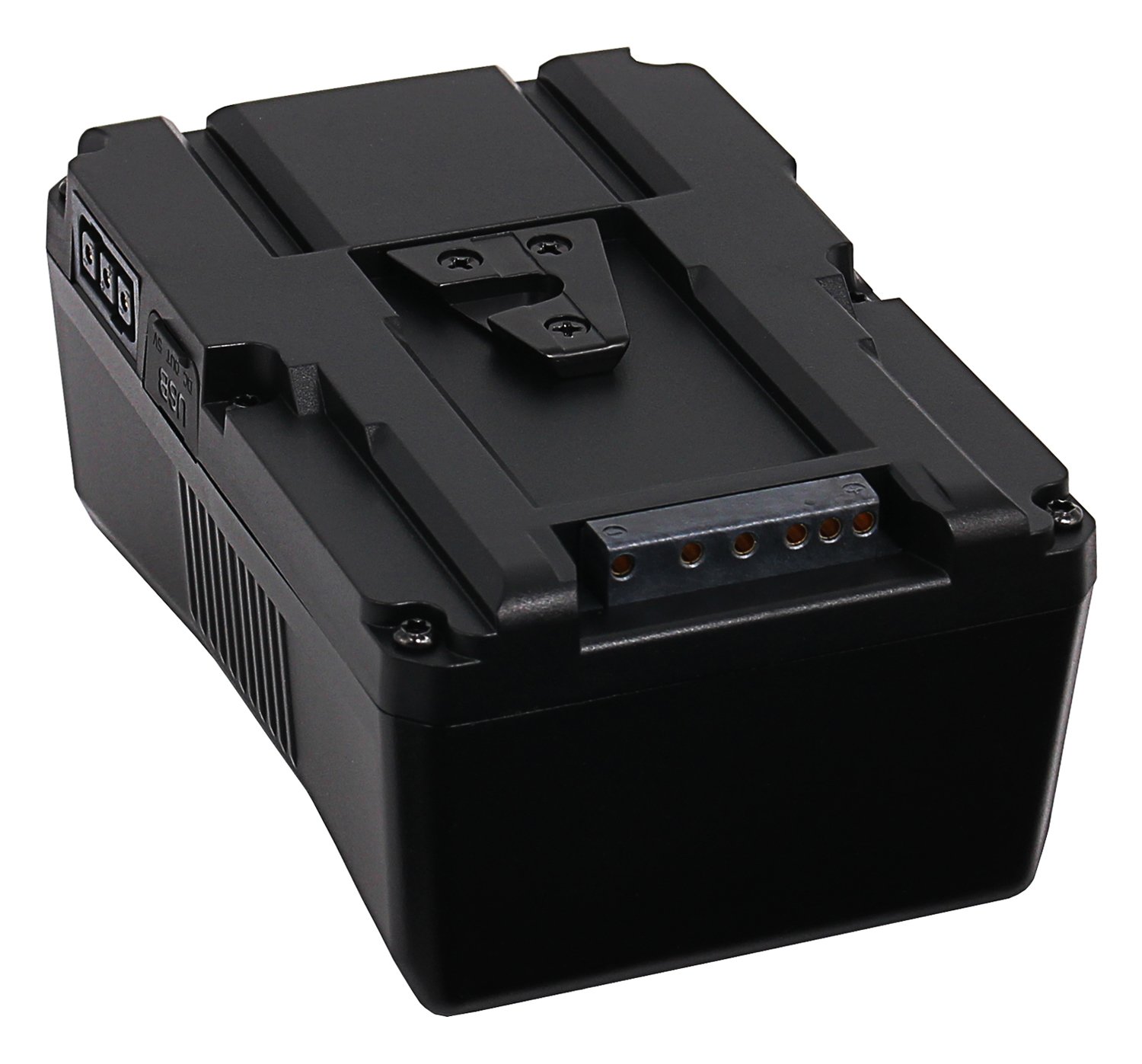

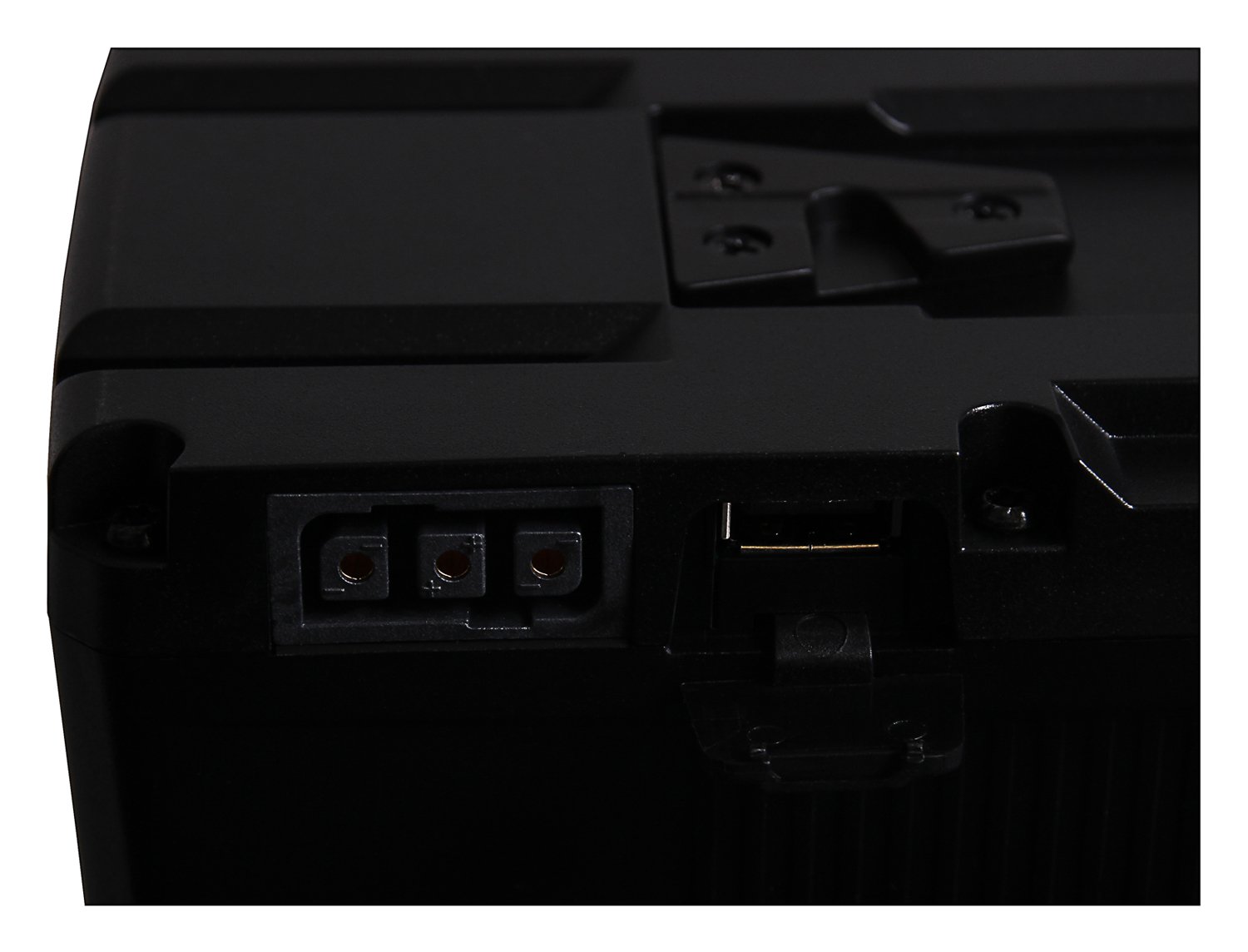

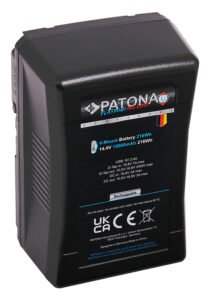

New in the PATONA Platinum-Serie we present the V-Mount battery with 216Wh.. The continuous discharge rate is 24A. For additional convenience, the battery has a D-Tap connector, a DC connector (10-16.8V, 3A max.) and a USB output built in. Thus, additional devices can be connected and used. A 4-stage LED display informs you about the charging status of the battery.

This battery was developed for a sensationally long-lasting photo pleasure. The performance of the installed cells is almost inexhaustible.

In the PATONA Platinum series, the most advanced cells have been installed, which have a quality that is not only exceptional, but also impressive at the same time. The Platinum series is the highest quality, longest lasting and most innovative series from PATONA. With the purchase of a battery from the PATONA Platinum Series you acquire an excellent, exquisite product that will fascinate you.

Technical Data:

Capacity: 15.000mAh / 14,4V / 216Wh
Output USB: 5V / 2,4A
D-Tap Input: 16,8V / 7A max.
D-Tap Output: 10-16.8V / 240W max.
DC in: 16.8V 3A max
DC out: 10V-16.8V 3A max.
Connection-Type: V-Mount
Type: Li-Ion
Number of cells: 12
Max. Charging current: 6A
Max. Discharge current: 14.3A (16.8V) ~ 24A (10V)
Weight: 1168gr
Dimensions: 97x88x146mm
Brand: PATONA Platinum

Suitable for the following camera types

V-Mount Sony
SONY camcorders HVR-S270C PMW-EX3, PMW-EX330K, PMW-EX330L, PMW-EX330R, PMW-320, PMW-500, PMW-580K, PMW580L, PDW-680, PDW-700, PDW-850, PMW-TD300, HDW-F900R, HDW-680, HDW-800P, PMW-F55, PMW-F5

Fit for ALL cameras and LED lights with standard v-mount battery plates, compatible with Blackmagic Ursa Mini, RED EPIC, RED SCARLET cameras, Sony Video 4K Digital Cinema Cameras Broadcast DSLR, LED Light, Monitor, HDCAM, XDCAM and other camcorders that accept V type battery.
