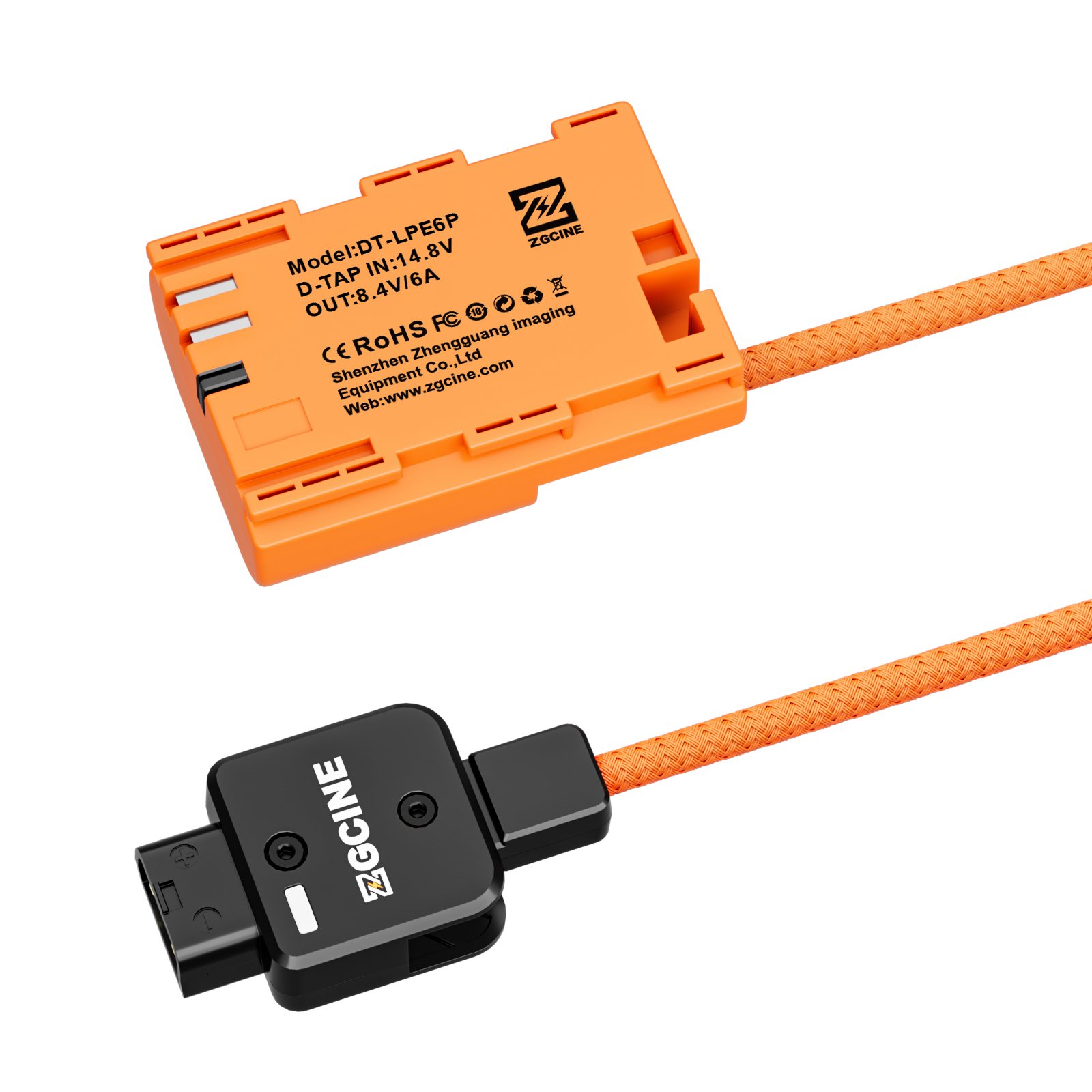

ZGCINE DT-LPE6P Overview

The ZGCINE DT-LPE6P D-Tap to LP-E6P Braided Dummy Battery Cable is a regulated cable that allows you to power a camera compatible with an LP-E6P battery from a D-Tap supply. The cable outputs 8 VDC from a 12 to 17 VDC source. An integrated indicator light alerts you to reverse polarity, to help protect your equipment. The integrated decoding chip allows you to power your camera without pop-up warnings. In addition, the dummy battery is overvoltage, overheating, and overcharge short-circuit protected.

Feature/Specification

New full decoding, upgraded chipno pop-up window, backward compatibility with LPE6/E6NH/E6P Canon Cameras.

Innovative adjustable male D-Tap angle, Support 180° rotation, adjustable left and right directions (solve the problem that some ports are blocked by the D-Tap plug on the market due to the fixed direction, causing other plugs to be unable to be inserted)

Anti-reverse indicator (Red light blinks means wrongly plugged in, power supply will cut off automatically; green light always on means correct connection)

Uses a standard D-Tap port and fits most V-mount batteries or Glod-Mount and B-mount batteries.

with Overvoltage, overheating and overcharge short-circuit protection,Continuous power supply for video recording or live broadcast

Input Voltage: 8V – 16.8V,Output Voltage: 8.4V(Regulated)
Output Current: 3A, braided Cable Size：60CM
